Home Extractor Fans
Extractor Fans

For more information on a specific machine please call us on 01684 290144

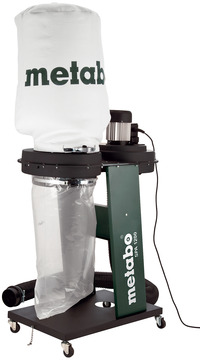

metabo SPA 1200 Print









  SPA 1200 Extractor Fan

  • For connecting to all wood processing machines
  • Healthy air at the workplace: clean air – clean work
  • High extraction output
  • Mobile use, easy to connect
  • Suction hose connection Ø 100 mm
  • Large range of accessories
  • Mobile; stable stand with supported chip collection bag
  • Aerodynamically shaped fan wheel made of impact-resistant ABS plastic for high air output, low noise and long service life
  • For single phase alternating current
Specification:


Dimensions L x W x H

830 x 450 x 1.600 mm

Maximum vacuum

1.600 Pa

Maximum volume flow

900 m³/h

Filter surface

1 m²

Chip bag capacity

65 l

Mains voltage

230 V

Rated input power

0,55 kW

Weight

22 kg

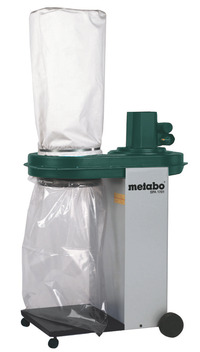

metabo SPA 1702W Print

 SPA 1702W Extractor Fan



  • For connecting to all wood processing machines
  • Healthy air at the workplace: clean air – clean work
  • High extraction output
  • Mobile use, easy to connect
  • Suction hose connection Ø 100 mm
  • Mobile; stable stand with supported chip collection bag
  • Large range of accessories
  • BIA-tested dust filter of G category
  • For single phase alternating current
Specification:

Dimensions L x W x H

882 x 562 x 1.671 mm

Maximum vacuum

1.730 Pa

Maximum volume flow

1.010 m³/h

Filter surface

1,1 m²

Chip bag capacity

90 l

Mains voltage

230 V

Rated input power

0,75 kW

Weight

24 kg

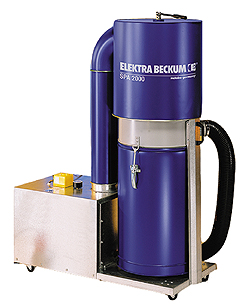

metabo SPA 2002 D Print





         SPA 2002 D Extractor Fan

  • Air purifier, certified according to GS-HO-07
  • Corresponds to the cleanliness and safety requirements.
  • Continuous compliance of only 0.1 mg/m3 residual dust content for a healthy environment at work.
  • Released for commercial use without further actions.
  • For connecting to all wood processing machines
  • Optimised ratio between flow and vacuum for improved performance.
  • Effective discharge by Cyclone technology
  • Manometer for monitoring the minimum air volume flow
  • Easy and effective filter cleaning, also during operation.
  • Mobile; stable stand with supported chip collection bag
  • Collection container with wheels for easy transport of the chips
  • Release lever for quick changing of dust sack.
  • Window for checking fill level of bin.
  • Large range of accessories
  • Single Phase or 3 Phase Available


    Specifications:


    Dimensions L x W x H

    1.178 x 650 x 1.973 mm

    Maximum vacuum

    2.124 Pa

    Maximum volume flow

    790 m³/h

    Filter surface

    4,1 m²

    Chip bag capacity

    135 l

    Mains voltage

    400 V

    Rated input power

    1,5 kW

    Weight

    116 kg




ALTECH Dusty Print



    DUSTY

  • HIGH CAPACITY INDUSTRIAL VACUUM / EXTRACTOR
  • Filter 20,000cm3 with external filter shaker
  • Capacity 50lt with fast un-chucking dust container
  • Nr 1 turbine (electronically balanced)

      STANDARD EQUIPMENT

  • Trolley
  • Outlet connection sleeve D.100mm
  • Flex Tube PVC D.100mm 6m Long
  • Connection Sleeve D.70mm

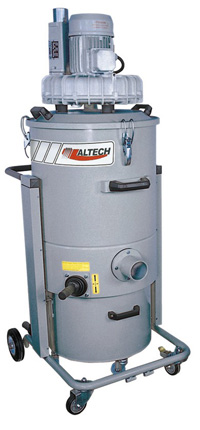

ALTECH Exho Print

    EXHO

  • INDUSTRIAL VACUUM / EXTRACTOR
  • Filter 16,400cm3 with external filter shaker
  • Capacity 120lt
  • Nr 2 Single Phase motors

      STANDARD EQUIPMENT

  • Trolley
  • Outlet connection sleeve D.100mm
  • Flex Tube PVC D.100mm 6m Long
  • Connection Sleeve D.70mm





For more information on a specific machine please call us on 01684 290144
