MEASURING DEVICES

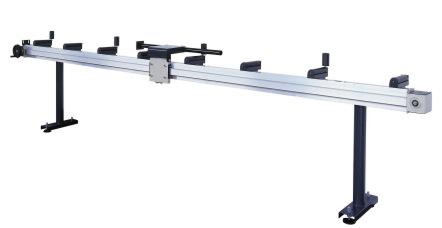

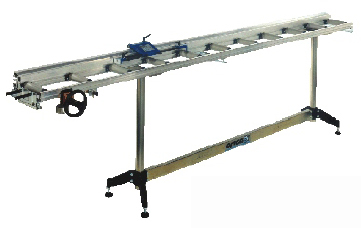

This series of roller tables is produced in four versions in lengths of 3000 and 4000 mm. Apart from the normal roller table, the series consists of a roller table with a mechanical reader positional directly from the work station by means of a hand wheel on which it is possible to read on the mechanical reader, the measurement set. When it has reached it's position, the stop is pneumatically locked.

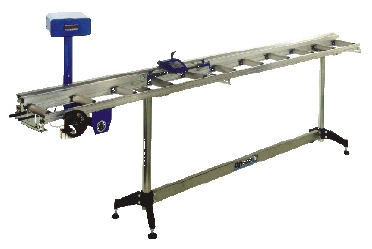

Same as above but with digital display on moveable stop. The measurement can be read on a digital display complete with a calibrating system.



INFEED / OUTFEEDING MEASURING DEVICES





MODEL DESCRIPTION
IN 3000 In feeding material support with rollers. 3m length
IN 4000 In feeding material support with rollers. 4m length
OUT 3000 Outfeeding material support with rollers. 3m length. Read out on milimetrical tape c/w hand wheel, magnifying glass and movable length stop
OUT 4000 Outfeeding material support with rollers. 4m length. Read out on milimetrical tape c/w hand wheel, magnifying glass and movable length stop
OUT-V 3000 Outfeeding material support with rollers. 3m length. Read out on digital display c/w hand wheel and movable length stop.
OUT-V 4000 Outfeeding material support with rollers. 4m length. Read out on digital display c/w hand wheel and movable length stop.
