 Model M7G Code 001

Manual End Milling Machine / 90 Degree End Milling, Manual Front Clamp

Power Single Phase 240V
Motor 0.9kW
Motor Spindle Diameter 22mm
Motor Rotation Clockwise
Max Cutter diameter 150mm
Max Stroke of Cutter Travel 260mm
Max Cutter Height 80mm
Weight 45Kg



 Model M7G Code 002

Manual End Milling Machine / 90 Degree End Milling, Pneumatic Front Clamp / Pneumatic Top Clamp

Power Single Phase 240V
Motor 0.9kW
Motor Spindle Diameter 22mm
Motor Rotation Clockwise
Max Cutter diameter 150mm
Max Stroke of Cutter Travel 260mm
Max Cutter Height 80mm
Weight 50Kg



 Model M7G Code 003

Manual End Milling Machine / 90 + 45 Degree End Milling, Pneumatic Front Clamp / Pneumatic Top Clamp

Power Single Phase 240V
Motor 0.9kW
Motor Spindle Diameter 22mm
Motor Rotation Clockwise
Max Cutter diameter 150mm
Max Stroke of Cutter Travel 260mm
Max Cutter Height 80mm
Weight 50Kg



 Model M7G + QR + 45 Code 004

Manual End Milling Machine / 90 + 45 Degree End Milling, Pneumatic Front Clamp / 2 Pneumatic Top Clamps, Six Depth Stops via Turret

Power Single Phase 240V
Motor 0.9kW
Sleeve O/D 32mm No Key Way Required
Motor Rotation Clockwise
Max Cutter diameter 150mm
Max Stroke of Cutter Travel 260mm
Max Cutter Height 80mm
Weight 65Kg



 Model M7G + SP + QR + 45 Code 005

Manual End Milling Machine / 90 Degree + 45 End Milling + Corner Cleaner / 3 Pneumatic Top Clamps, 6 Depth Stops via Turret

This machine has a quick release cutter change via a sleeve

Power Single Phase 240V
Motor 0.9kW
Sleeve O/D 32mm No Key Way Required
Motor Rotation Clockwise
Max Cutter diameter 150mm
Max Stroke of Cutter Travel 260mm
Max Cutter Height 80mm
Weight 65Kg



 Model M7GSP Code 006

Manual Corner Cleaner / 2 Pneumatic Top Clamps

Power Single Phase 240V
Motor 0.9kW
Motor Spindle Diameter 22mm
Motor Rotation Clockwise
Max Cutter diameter 150mm
Max Stroke of Cutter Travel 260mm
Max Cutter Height 80mm
Weight 50Kg



 Model M7GSP + QR Code 007

Manual Corner Cleaner / 2 Pneumatic Top Clamps

This machine has a quick release cutter change via a sleeve

Power Single Phase 240V
Motor 0.9kW
Sleeve O/D 32mm No Key Way Required
Motor Rotation Clockwise
Max Cutter Diameter 150mm
Max Stroke of Cutter Travel 260mm
Max Cutter Height 80mm
Weight 55Kg



 Model ANT M7P Code 008

Automatic Beading Machine / Square Cutting Scotia/Ovolo Bead, Pneumatic Front Clamp

Power Single Phase 240V / Three Phase
Motor 0.9kW / 0.9 kW
Motor Spindle Diameter 22mm
Motor Rotation Clockwise
Max Cutter / Diamond Wheel Diameter 150mm
Max Stroke of Cutter Travel 200mm
Max Cutter Height 80mm
Weight 65Kg



 Model ANT M7P-CC + QR Code 009

Automatic Corner Cleaner / 2 Pneumatic Top Clamps

This machine has a quick release cutter change via a sleeve

Power Single Phase 240V / Three Phase
Motor 1.1kW / 1.1kW
Sleeve O/D 32mm No Key Way Requires
Motor Rotation Clockwise
Max Cutter diameter 150mm
Max Stroke of Cutter Travel 200mm
Max Cutter Height 80mm
Weight 65Kg



 Model ANT M7P-EM Code 010

Automatic End Milling Machine / 90 Degree End Milling, Pneumatic Front Clamp / Pneumatic Top Clamp

Power Single Phase 240V / Three Phase
Motor 0.9kW / 0.9kW
Motor Spindle Diameter 22mm
Motor Rotation Clockwise
Max Cutter diameter 150mm
Max Stroke of Cutter Travel 200mm
Max Cutter Height 80mm
Weight 60Kg



 Model ANT M7P-EM + QR + 45 Code 011

Automatic End Milling Machine / 90 + 45 Degree End Milling, Pneumatic Front Clamp / 2 Pneumatic Top Clamps, Six Depth Stops via Turret

Power Single Phase 240V / Three Phase
Motor 1.1kW / 1.1kW
Sleeve O/D 32mm No Key Way Required
Motor Rotation Clockwise
Max Cutter diameter 150mm
Max Stroke of Cutter Travel 200mm
Max Cutter Height 80mm
Weight 65Kg



 Model ANT M7P-EM + CC + QR + 45 Code 012

Automatic End Milling Machine / 90 + 45 Degree End Milling + Corner Cleaner / Six Depth Stops via Turret

This machine has a quick release cutter change via Turret

Power Single Phase 240V / Three Phase
Motor 1.1kW / 1.1kW
Sleeve O/D 32mm No Key Way Required
Motor Rotation Clockwise
Max Cutter diameter 150mm
Max Stroke of Cutter Travel 200mm
Max Cutter Height 80mm
Weight 65Kg

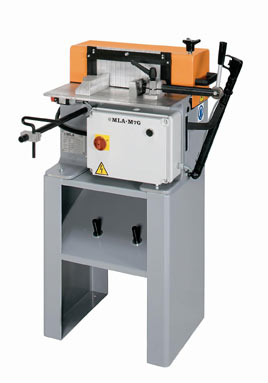

      M7G CE

  • MANUAL END MILLING MACHINE
  • for Aluminium and uPVC profiles
  • Low voltage two hand control
  • This machine can be adapted to do several different applications for example: Variable angle, corner cleaning etc. please refer to full specifications.
  • Single or Three Phase

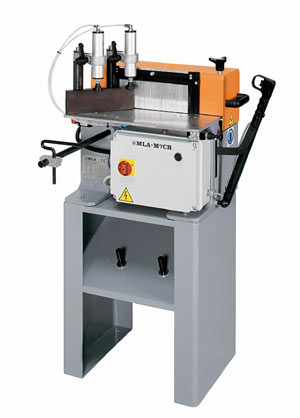

      M7CR CE

  • MANUAL END MILLING MACHINE
  • for Aluminium and uPVC profiles
  • Low voltage two hand control
  • This machine has a quick release cutter change
  • This machine can be adapted to do several different applications for example: Variable angle, corner cleaning etc. please refer to full specifications.
  • Single or Three Phase






      M12
  • MANUAL END MILLING MACHINE
  • With pneumatic clamps
  • Pneumatic quick release cutter change
  • Three Phase



      M14
  • SEMI-AUTOMATIC END MILLING MACHINE
  • With pneumatic clamps
  • Pneumatic quick release cutter change
  • Hydro pneumatic feed
  • Three Phase
