End Milling Machines |
|

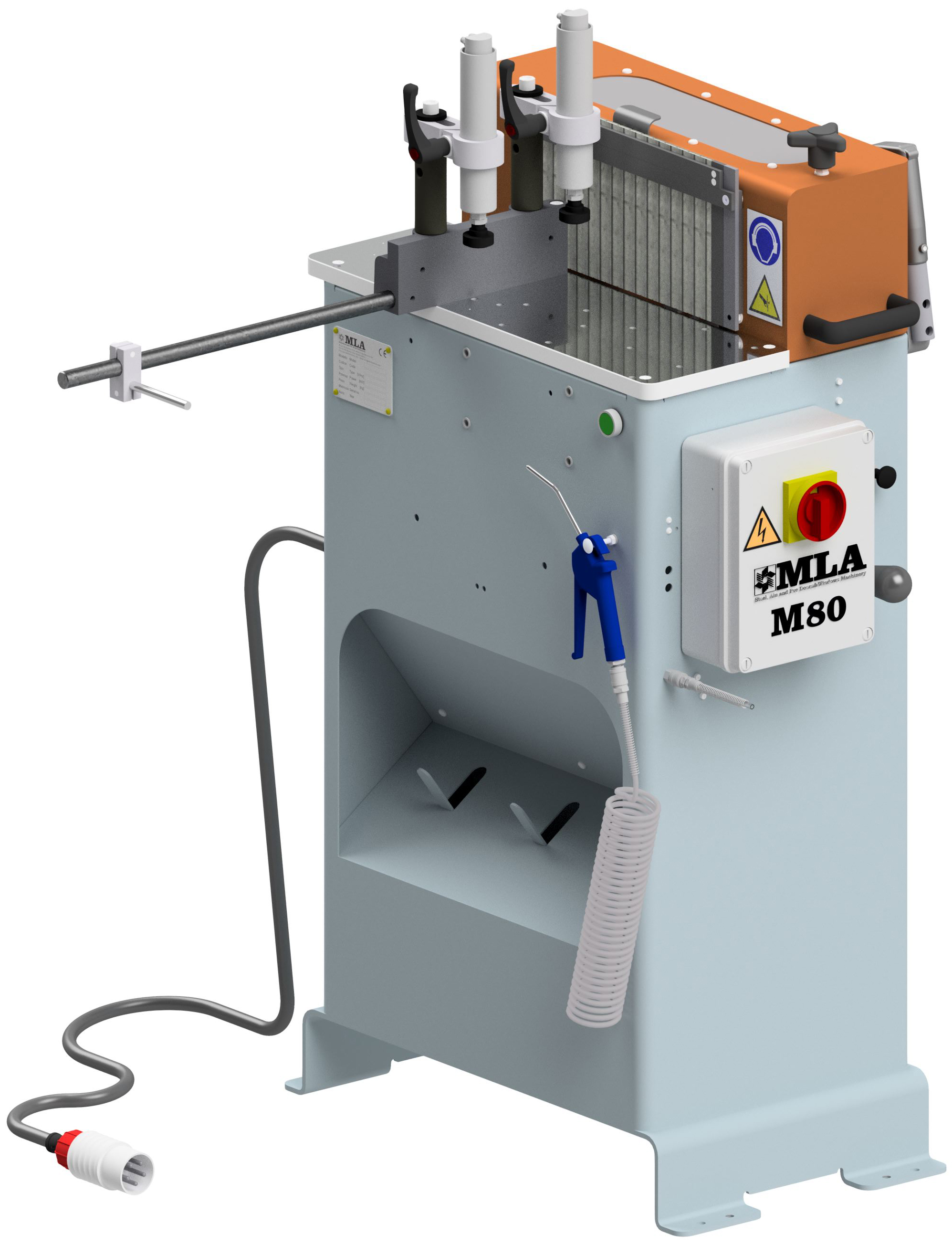

M80
|
- Manual End Milling Machine
- 2x Pneumatic Top Clamps
- 2 Hand Control
- Slat Guarding

|
Machine Discontinued
M7G CE
|
|

|
- Manual End Milling Machine
- 2x Pneumatic Top Clamps
- 2 Hand Control
- Slat Guarding

|
Machine Discontinued

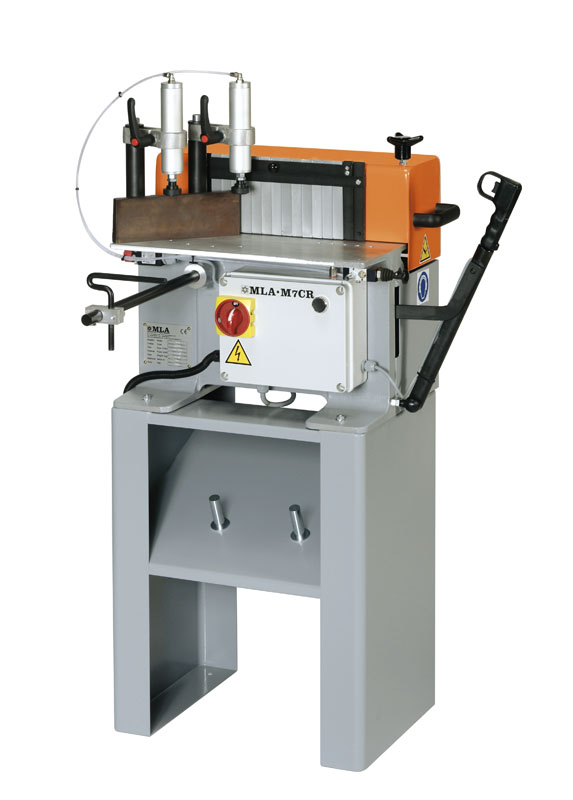

M7CR CE
|
|

|
- Manual End Milling Machine
- 2x Pneumatic Top Clamps
- Quick Release Cutter System
- Turret Depth Stop
- 2 Hand Control
- Slat Guarding

|
Semi Automatic End Millers
|

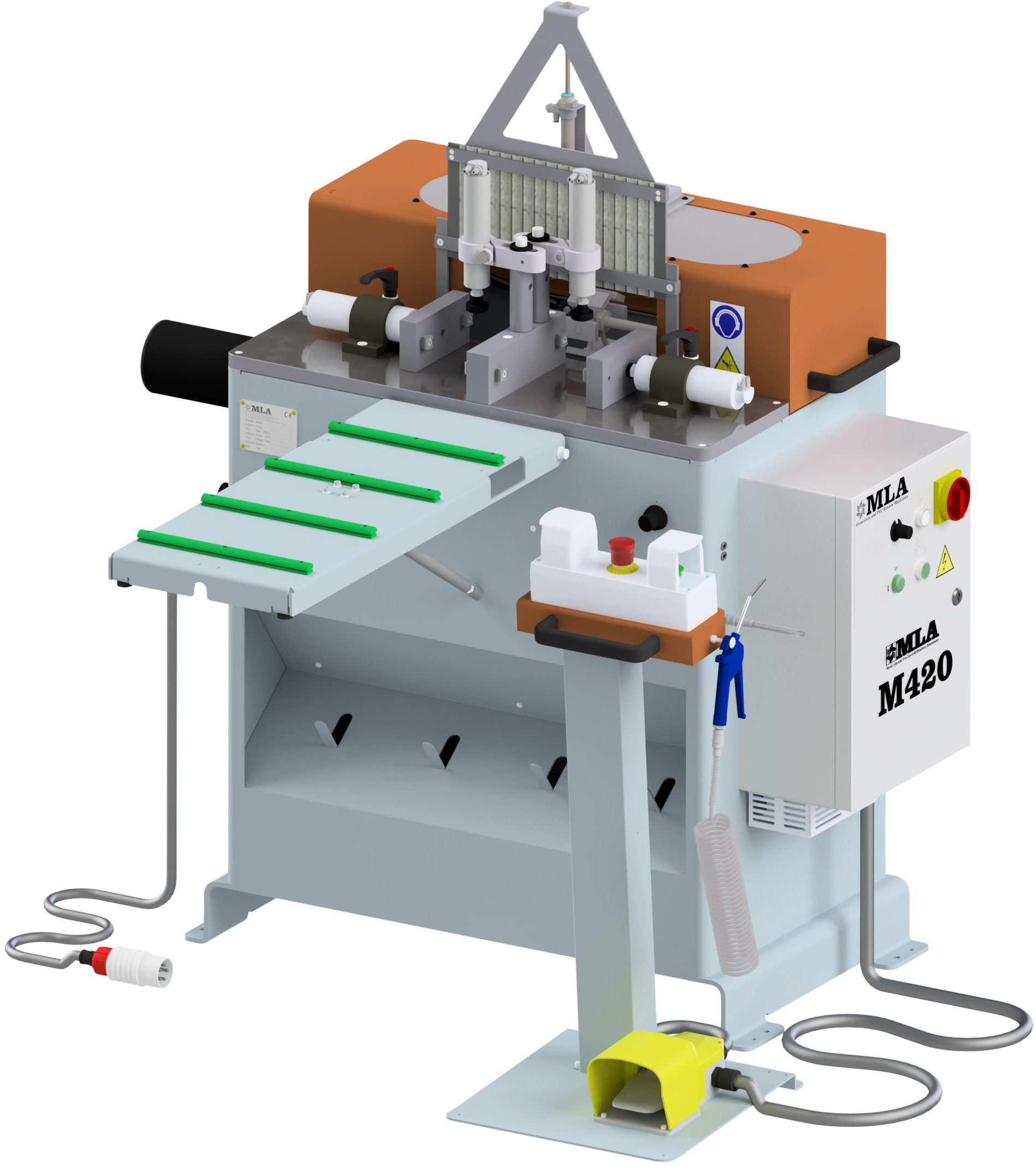

M420
|


|

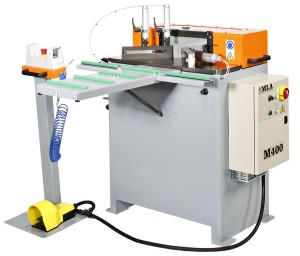

M400
|

|

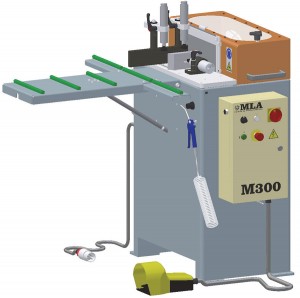

M300
|


|
M200
|


|

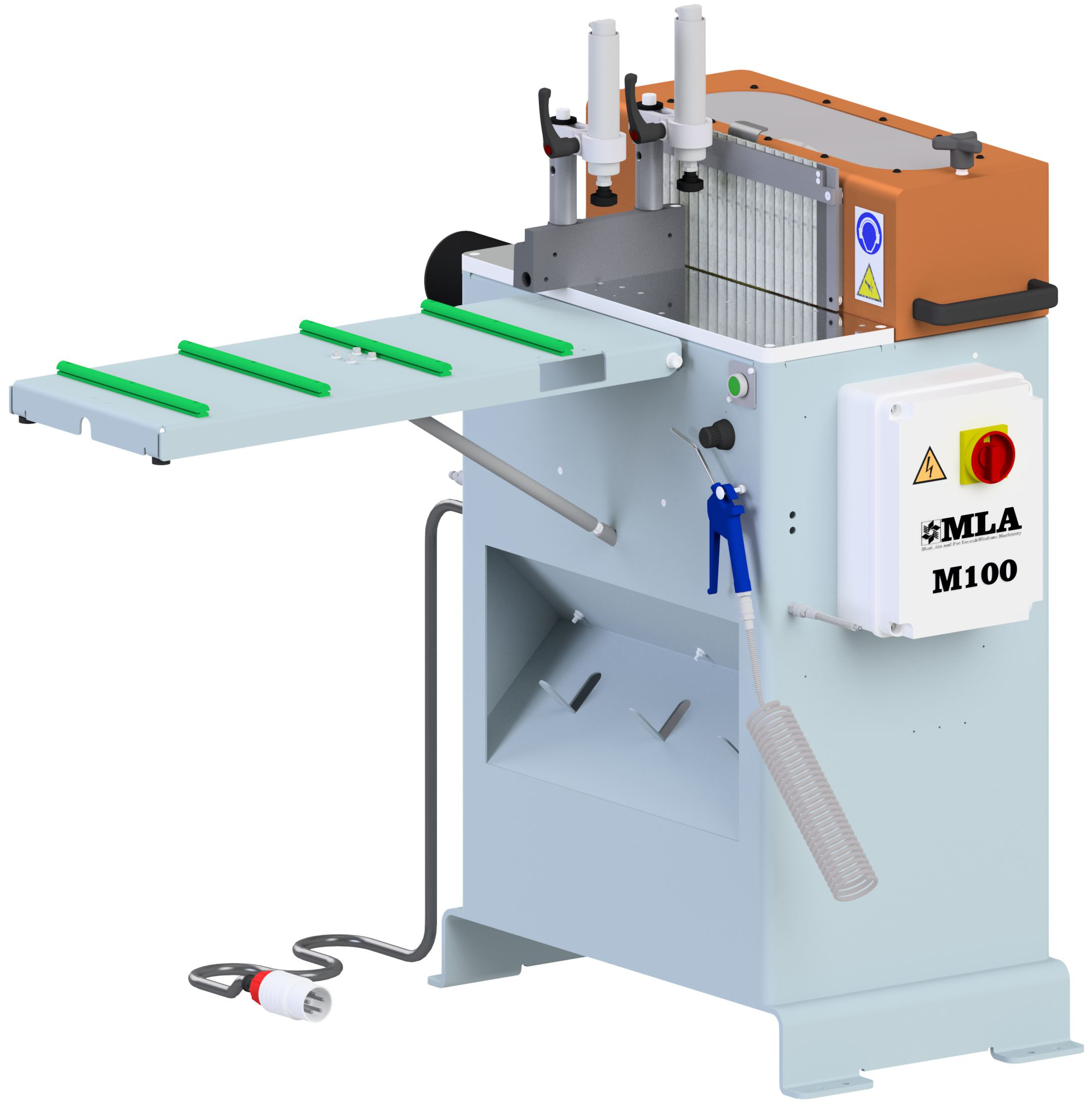

M100
|


|
Semi Automatic End Millers
|

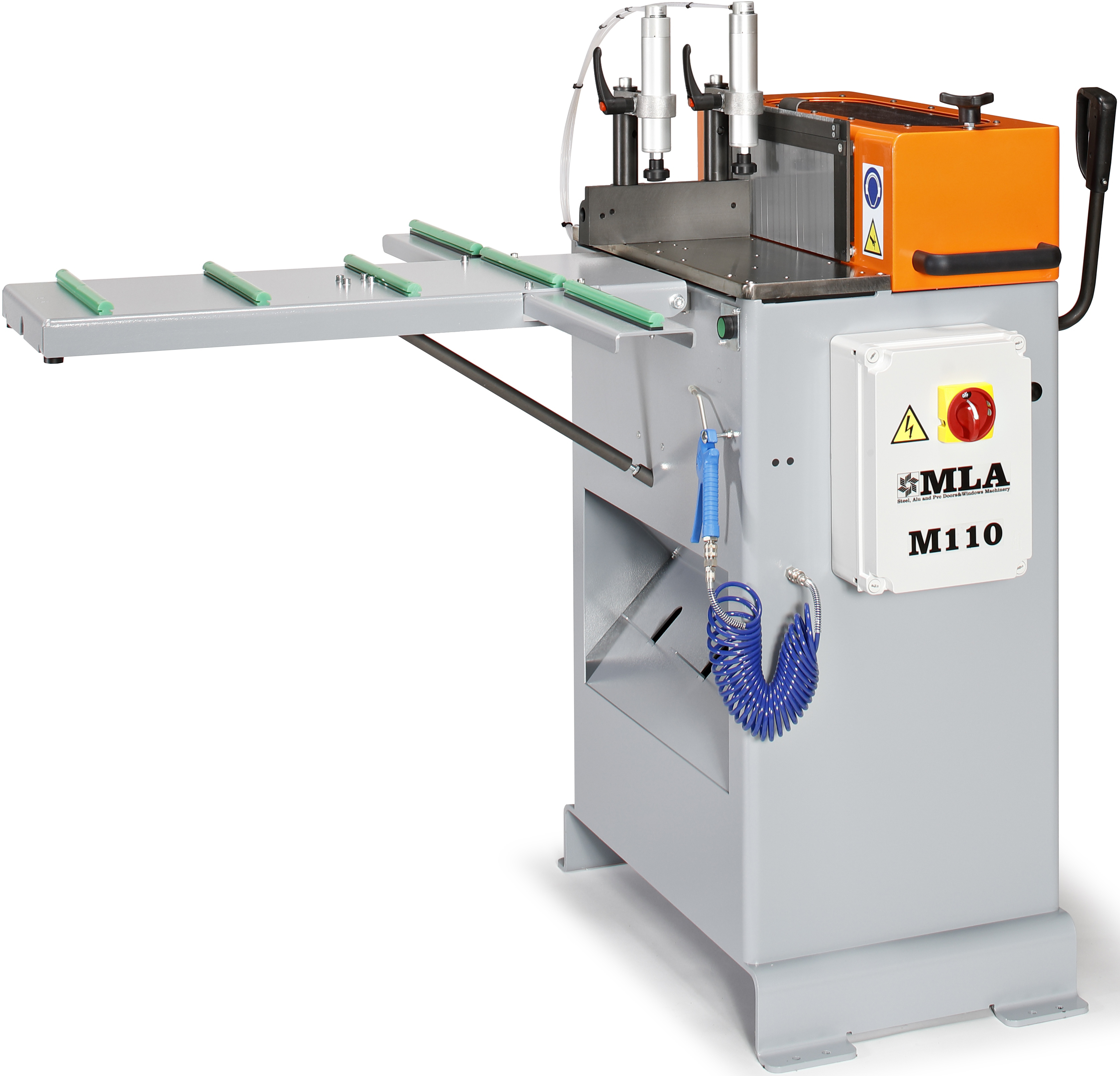

M110
|


|

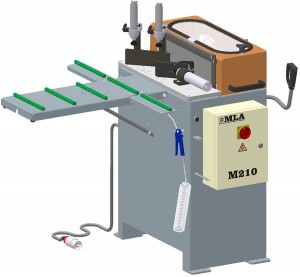

M210
|


|
M310
|


|
|
M310
|

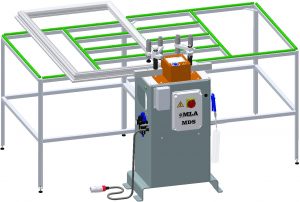

End-milling machine to mill out the central section
of the slave sash with reduced false mullion

|
Machines Discontinued but Spares still Available !

|
Model M7G Code 001
Manual End Milling Machine / 90 Degree End Milling, Manual Front Clamp
Power |
Single Phase 240V |
Motor |
0.9kW |
Motor Spindle Diameter |
22mm |
Motor Rotation |
Clockwise |
Max Cutter diameter |
150mm |
Max Stroke of Cutter Travel |
260mm |
Max Cutter Height |
80mm |
Weight |
45Kg |
|

|
Model M7G Code 002
Manual End Milling Machine / 90 Degree End Milling, Pneumatic Front Clamp / Pneumatic Top Clamp
Power |
Single Phase 240V |
Motor |
0.9kW |
Motor Spindle Diameter |
22mm |
Motor Rotation |
Clockwise |
Max Cutter diameter |
150mm |
Max Stroke of Cutter Travel |
260mm |
Max Cutter Height |
80mm |
Weight |
50Kg |
|

|
Model M7G Code 003
Manual End Milling Machine / 90 + 45 Degree End Milling, Pneumatic Front Clamp / Pneumatic Top Clamp
Power |
Single Phase 240V |
Motor |
0.9kW |
Motor Spindle Diameter |
22mm |
Motor Rotation |
Clockwise |
Max Cutter diameter |
150mm |
Max Stroke of Cutter Travel |
260mm |
Max Cutter Height |
80mm |
Weight |
50Kg |
|

|
Model M7G + QR + 45 Code 004
Manual End Milling Machine / 90 + 45 Degree End Milling, Pneumatic Front Clamp / 2 Pneumatic Top Clamps, Six Depth Stops via Turret
Power |
Single Phase 240V |
Motor |
0.9kW |
Sleeve O/D |
32mm |
Motor Rotation |
Clockwise |
Max Cutter diameter |
150mm |
Max Stroke of Cutter Travel |
260mm |
Max Cutter Height |
80mm |
Weight |
65Kg |
|

|
Model M7G + SP + QR + 45 Code 005
Manual End Milling Machine / 90 Degree + 45 End Milling + Corner Cleaner / 3 Pneumatic Top Clamps, 6 Depth Stops via Turret
This machine has a quick release cutter change via a sleeve
Power |
Single Phase 240V |
Motor |
0.9kW |
Sleeve O/D |
32mm |
Motor Rotation |
Clockwise |
Max Cutter diameter |
150mm |
Max Stroke of Cutter Travel |
260mm |
Max Cutter Height |
80mm |
Weight |
65Kg |
|

|
Model M7GSP Code 006
Manual Corner Cleaner / 2 Pneumatic Top Clamps
Power |
Single Phase 240V |
Motor |
0.9kW |
Motor Spindle Diameter |
22mm |
Motor Rotation |
Clockwise |
Max Cutter diameter |
150mm |
Max Stroke of Cutter Travel |
260mm |
Max Cutter Height |
80mm |
Weight |
50Kg |
|

|
Model M7GSP + QR Code 007
Manual Corner Cleaner / 2 Pneumatic Top Clamps
This machine has a quick release cutter change via a sleeve
Power |
Single Phase 240V |
Motor |
0.9kW |
Sleeve O/D |
32mm |
Motor Rotation |
Clockwise |
Max Cutter Diameter |
150mm |
Max Stroke of Cutter Travel |
260mm |
Max Cutter Height |
80mm |
Weight |
55Kg |
|

|
Model ANT M7P Code 008
Automatic Beading Machine / Square Cutting Scotia/Ovolo Bead, Pneumatic Front Clamp
Power |
Single Phase 240V / Three Phase |
Motor |
0.9kW / 0.9 kW |
Motor Spindle Diameter |
22mm |
Motor Rotation |
Clockwise |
Max Cutter / Diamond Wheel Diameter |
150mm |
Max Stroke of Cutter Travel |
200mm |
Max Cutter Height |
80mm |
Weight |
65Kg |
|

|
Model ANT M7P-CC + QR Code 009
Automatic Corner Cleaner / 2 Pneumatic Top Clamps
This machine has a quick release cutter change via a sleeve
Power |
Single Phase 240V / Three Phase |
Motor |
1.1kW / 1.1kW |
Sleeve O/D |
32mm |
Motor Rotation |
Clockwise |
Max Cutter diameter |
150mm |
Max Stroke of Cutter Travel |
200mm |
Max Cutter Height |
80mm |
Weight |
65Kg |
|

|
Model ANT M7P-EM Code 010
Automatic End Milling Machine / 90 Degree End Milling, Pneumatic Front Clamp / Pneumatic Top Clamp
Power |
Single Phase 240V / Three Phase |
Motor |
0.9kW / 0.9kW |
Motor Spindle Diameter |
22mm |
Motor Rotation |
Clockwise |
Max Cutter diameter |
150mm |
Max Stroke of Cutter Travel |
200mm |
Max Cutter Height |
80mm |
Weight |
60Kg |
|

|
Model ANT M7P-EM + QR + 45 Code 011
Automatic End Milling Machine / 90 + 45 Degree End Milling, Pneumatic Front Clamp / 2 Pneumatic Top Clamps, Six Depth Stops via Turret
Power |
Single Phase 240V / Three Phase |
Motor |
1.1kW / 1.1kW |
Sleeve O/D |
32mm |
Motor Rotation |
Clockwise |
Max Cutter diameter |
150mm |
Max Stroke of Cutter Travel |
200mm |
Max Cutter Height |
80mm |
Weight |
65Kg |
|

|
Model ANT M7P-EM + CC + QR + 45 Code 012
Automatic End Milling Machine / 90 + 45 Degree End Milling + Corner Cleaner / Six Depth Stops via Turret
This machine has a quick release cutter change via Turret
Power |
Single Phase 240V / Three Phase |
Motor |
1.1kW / 1.1kW |
Sleeve O/D |
32mm |
Motor Rotation |
Clockwise |
Max Cutter diameter |
150mm |
Max Stroke of Cutter Travel |
200mm |
Max Cutter Height |
80mm |
Weight |
65Kg |
|
Machine Discontinued but Spares still Available !
|
|

|

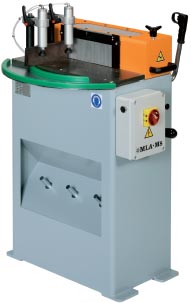

M8
- MANUAL END MILLING MACHINE
- Two pneumatic top clamps
- Quick release cutter change system
- Six depth cutter stop
- Three phase power
OPTIONAL EXTRAS
- Can be a corner cleaner
- Pneumatic mist spray for Aluminium
- Download leaflet below for full options list...
|
|
|
|
|
|
|
|
Machine Discontinued but Spares still Available !
|
|

|

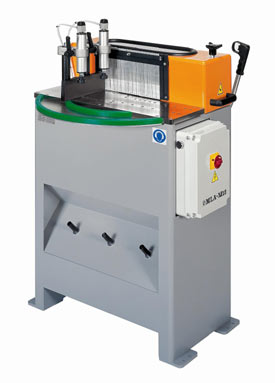

M12
- MANUAL END MILLING MACHINE
- With pneumatic clamps
- Pneumatic quick release cutter change
- Three Phase
|
Machine Discontinued but Spares still Available !
|
|

|

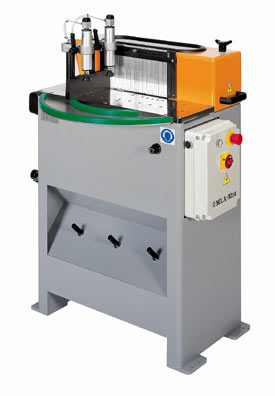

M14
- SEMI-AUTOMATIC END MILLING MACHINE
- With pneumatic clamps
- Pneumatic quick release cutter change
- Hydro pneumatic feed
- Three Phase
|
Machine Discontinued but Spares still Available !
|
|

|

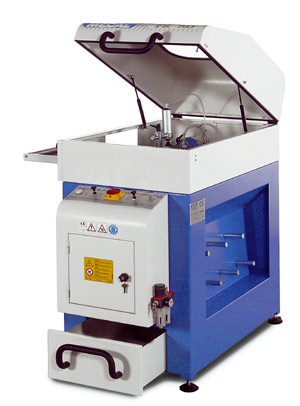

FR 703
- SINGLE SPINDLE END MILLING MACHINE
- Automatic working cycle
- Fast change of cutter set
- Able to perform end milling out of 90 degrees
- Max. diameter of cutter set is 170 mm
- Three Phase

|
|
|
|
|
